Processor parameter for referance only
|
Processors |
Cores & Threads |
Cache |
Max Turbo Frequency |
TDP |
Graphics |
|
Intel N95 |
4 cores, 4 threads |
6M |
3.40 GHz |
15W |
Intel UHD Graphics 1200MHz 16EUS |
|
Intel N100 |
4 cores, 4 threads |
6M |
3.40 GHz |
6W |
Intel UHD Graphics 750MHz 24EUS |
|
Intel Core i7-1260P |
12 cores, 16 threads |
18M |
4.70 GHz |
28W |
Intel Iris Xe Graphics 1.40GHz 96EUS |
Model: M9(metal case)
Dimension:113mm(L)x106mm(W)x42mm(H)

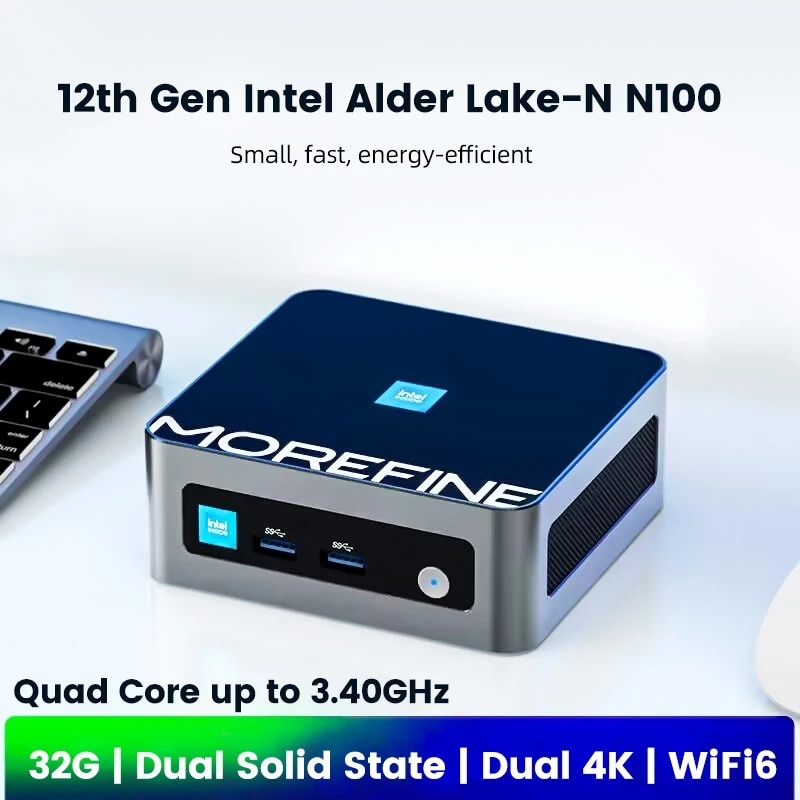

CPU: Intel 12th Gen Alder Lake N100 4 cores 4 threads up to 3.40GHz 6MB Cache TDP 6W
GPU: Intel UHD Graphics Gen12 750MHz 24EUS
Ram: 1xDDR4 SODIMM, max 32GB 3200MHz
SSD: Support M.2 2280 NVMe/PCIE3.0x2+M.2 2242 NGFF/SATA
WiFi: Dual Band AX WiFi6 with Bluethooth5.2
RJ45: 1 x 2500M Intel i225-V B3
I/O: 4 x USB 3.2, 2 x HDMI2.0, 1 x RJ45 2.5G LAN, 1 x 3.5mm Audio Jack, 1 x switch, 1 x DC IN
OS: Windows 11(DO NOT support Windows 10)
Power: 12V 3A
Model: M8(plastic case)
Dimension:113mm(L)x106mm(W)x42mm(H)
CPU: Intel 12th Gen Alder Lake N95 4 cores 4 threads up to 3.40GHz 6MB Cache TDP 15W
GPU: Intel UHD Graphics Gen12 1200MHz 16EUS
Ram: 1xDDR4 SODIMM, max 32GB 3200MHz
SSD: Support M.2 2280 NVMe/PCIE3.0x2+M.2 2242 NGFF/SATA
WiFi: Dual Band AC WiFi5 with Bluethooth4.2
RJ45: 1 x 2500M Intel i225-V B3
I/O: 4 x USB 3.2, 2 x HDMI2.0, 1 x RJ45 2.5G LAN, 1 x 3.5mm Audio Jack, 1 x switch, 1 x DC IN
OS: Windows 11(DO NOT support Windows 10)
Power: 12V 4A
| Color | No Ram No Storage, 8GB DDR4 128GB NVMe, 16GB DDR4 256GB NVMe, 16GB DDR4 512GB NVMe, 16GB DDR4 1TB NVMe, 32GB DDR4 512GB NVMe, 32GB DDR4 1TB NVMe, 32GB DDR4 2TB NVMe |
|---|---|
| Bundle | M9PRO i7-1260P WiFi6, M9 Intel N100 WiFi6, M8 Intel N95 WiFi5 |
| Plugs Type | us, AU, UK, EU |
| Ships From | China |
