Processor parameter for referance only
|
Processors |
Cores & Threads |
Cache |
Base Frequency |
Max Turbo Frequency |
TDP |
Graphics |
|
Ryzen 7 5800H |
8 cores, 16 threads |
16M |
3.20 GHz |
4.40 GHz |
45W |
AMD Radeon Graphics 8 Core 2000MHz |
|
Ryzen 5 5600H |
6 cores, 12 threads |
16M |
3.30 GHz |
4.20 GHz |
45W |
AMD Radeon Graphics 7 Core 1800MHz |

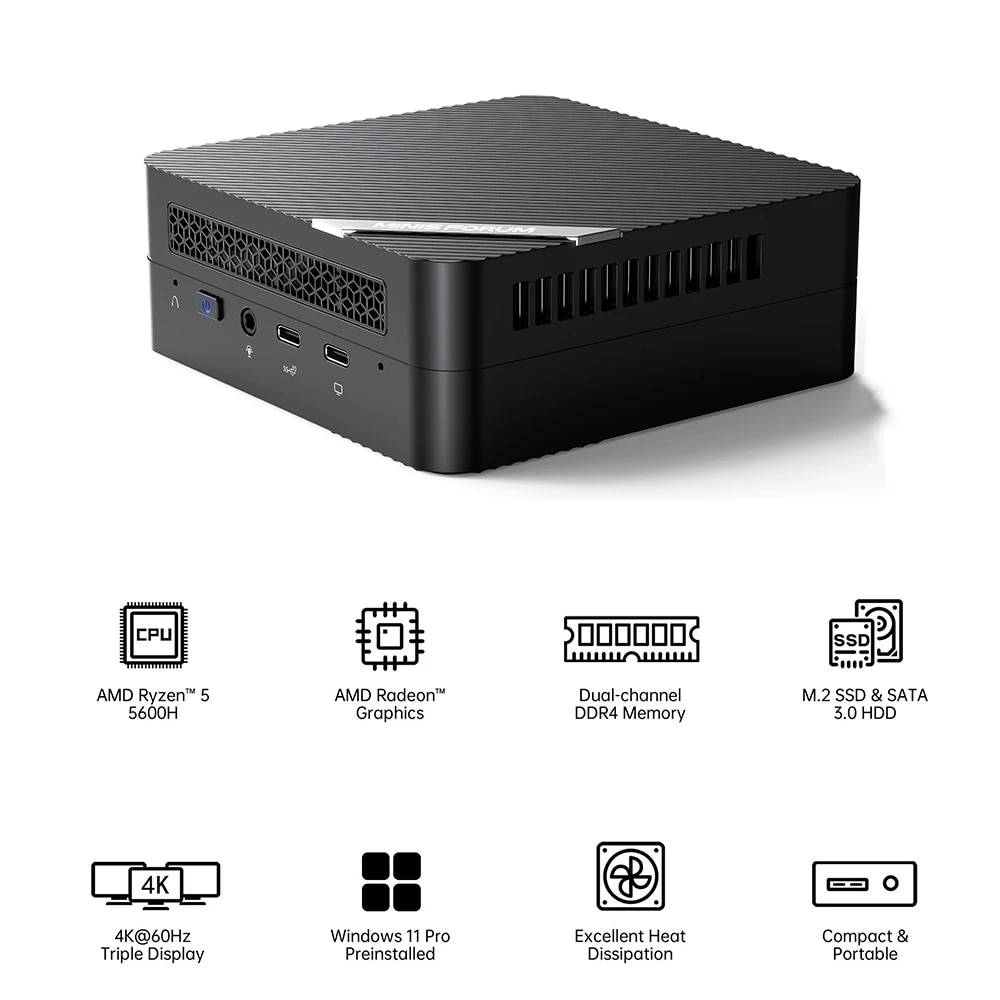

AMD Ryzen™ 5000 Series Processor

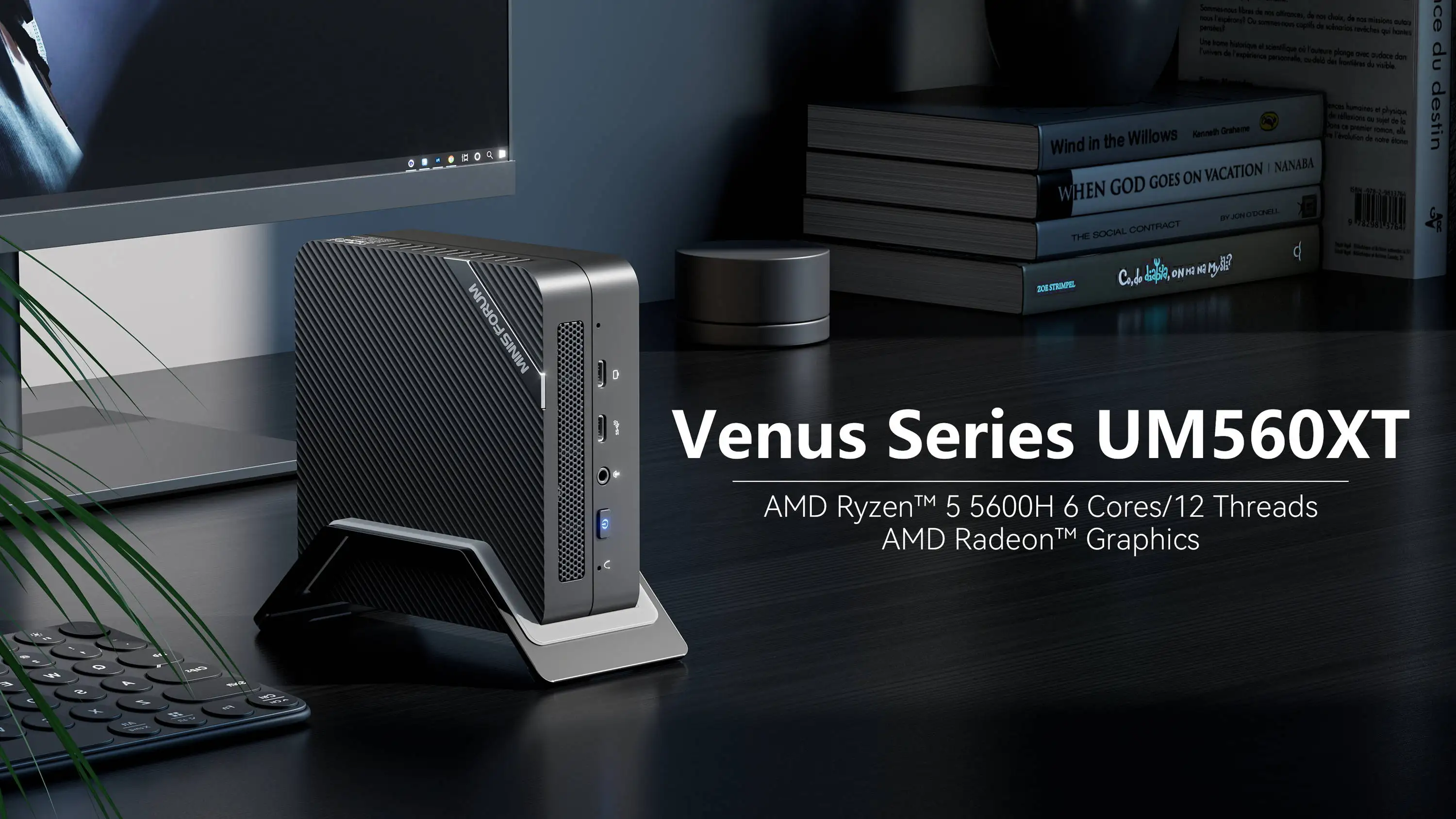

The AMD Ryzen™ 5 5600H is at the heart of UM560XT, it features 6 cores/12 threads, and 16MB of L3 cache. Those cores are clocked at 3.3 GHz (base clock) to 4.2 GHz (Turbo). With this processor, UM560XT can easily handle multitasking and multimedia use, and offer decent graphic performance for games and content creation.
Productivity Boost
Powered by the AMD Ryzen™ 7 5800H/5 5600H, the UM580D/UM560XT boost efficiency and productivity in office routine and simple content creation.

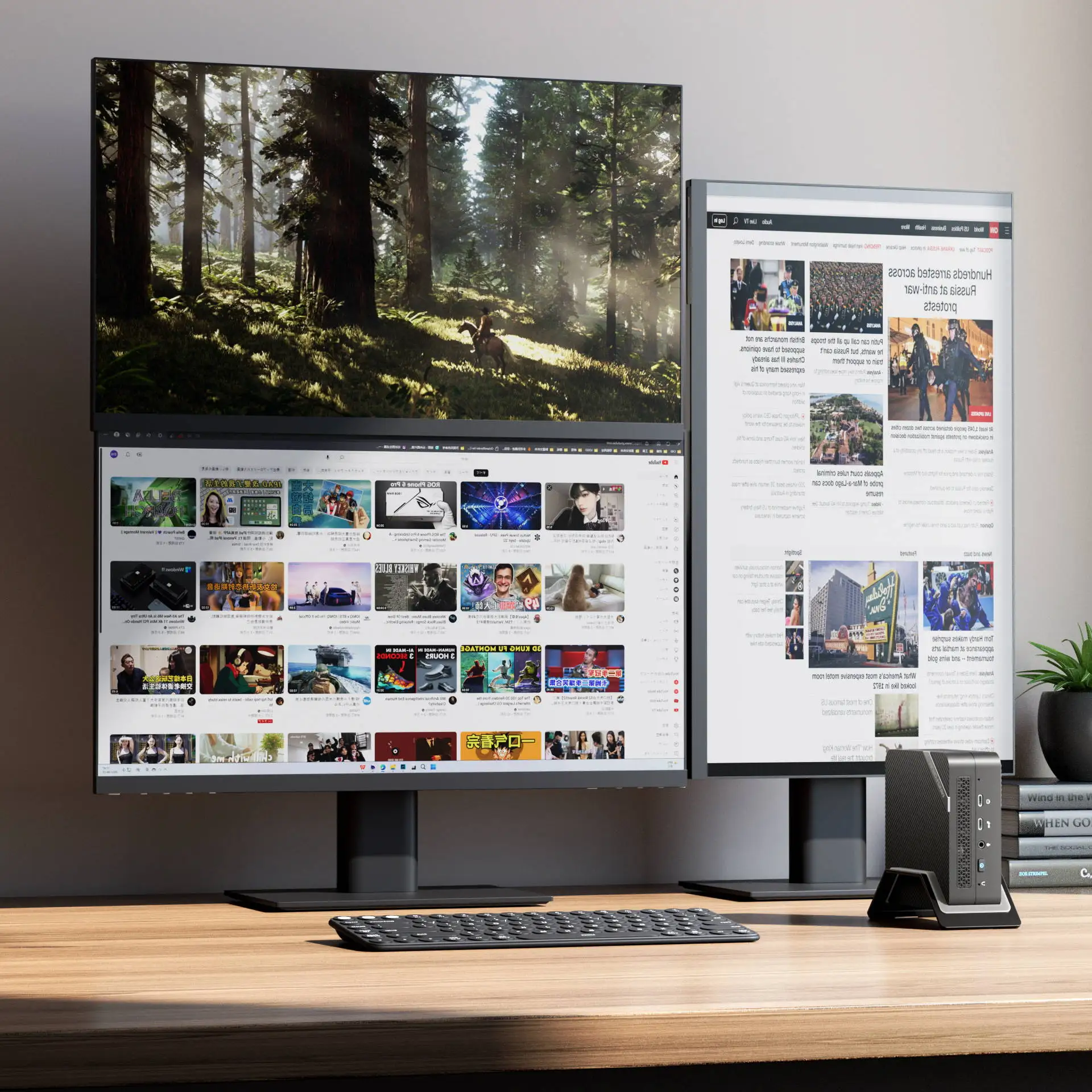

STUNNING TRIPLE DISPLAYS
Max. Resolution Up to 4K@60Hz
Up to three monitors can be simultaneously connected to UM580D/UM560XT using two HDMI2.0 ports and one USB C port. Get ready for a stable and cinematic 4K@60Hz display for multitasking and entertainment.
Upgrade & Build Your Own Set-up
The DDR4 dual-channel memory, M.2 2280 NVMe PCIe3.0 SSD, and 2.5-inch SATA 3.0 HDD are all available for further upgrade and expansion. You can upgrade the memory and storage capacity for better data reading/writing, higher data transfer speed, and more storage space.

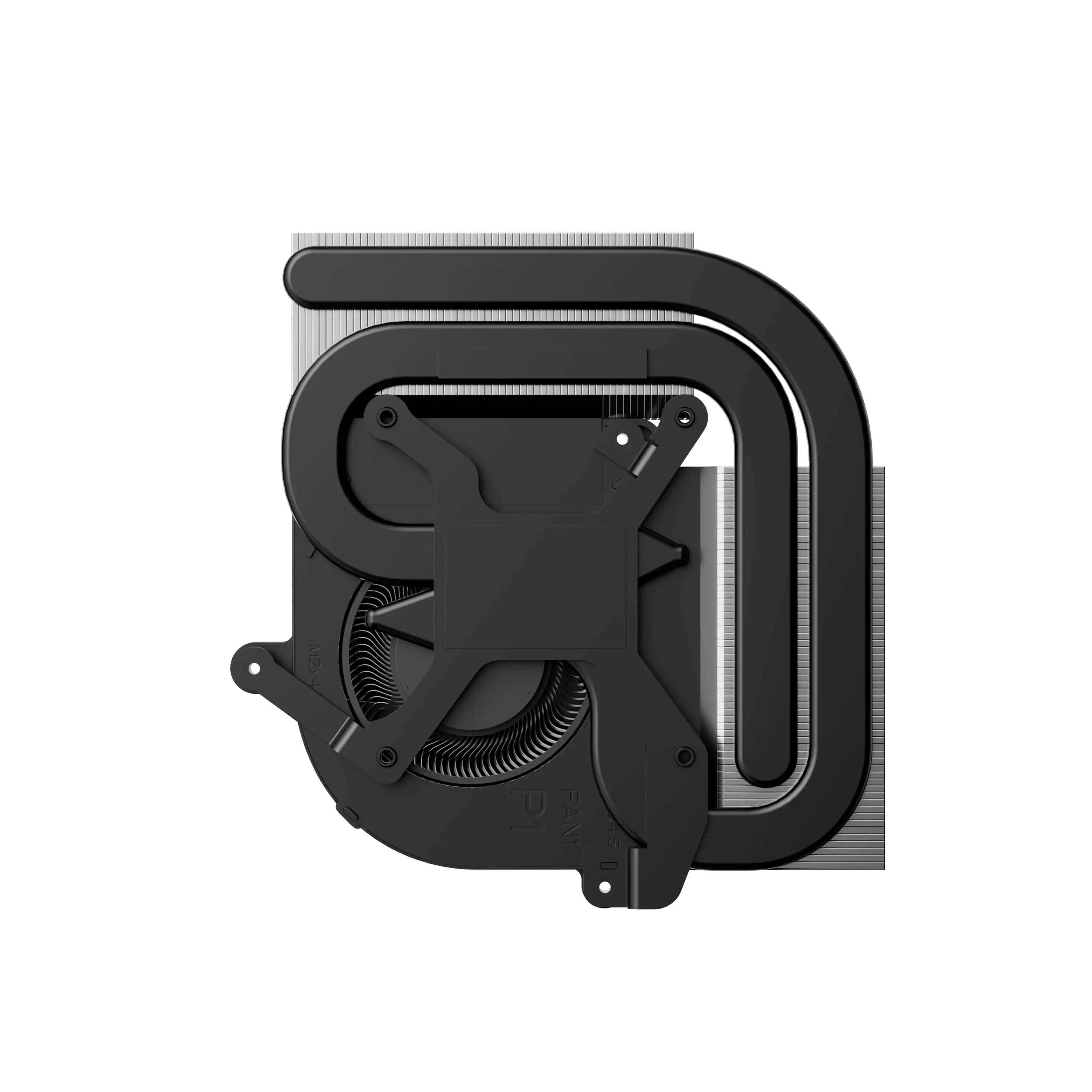

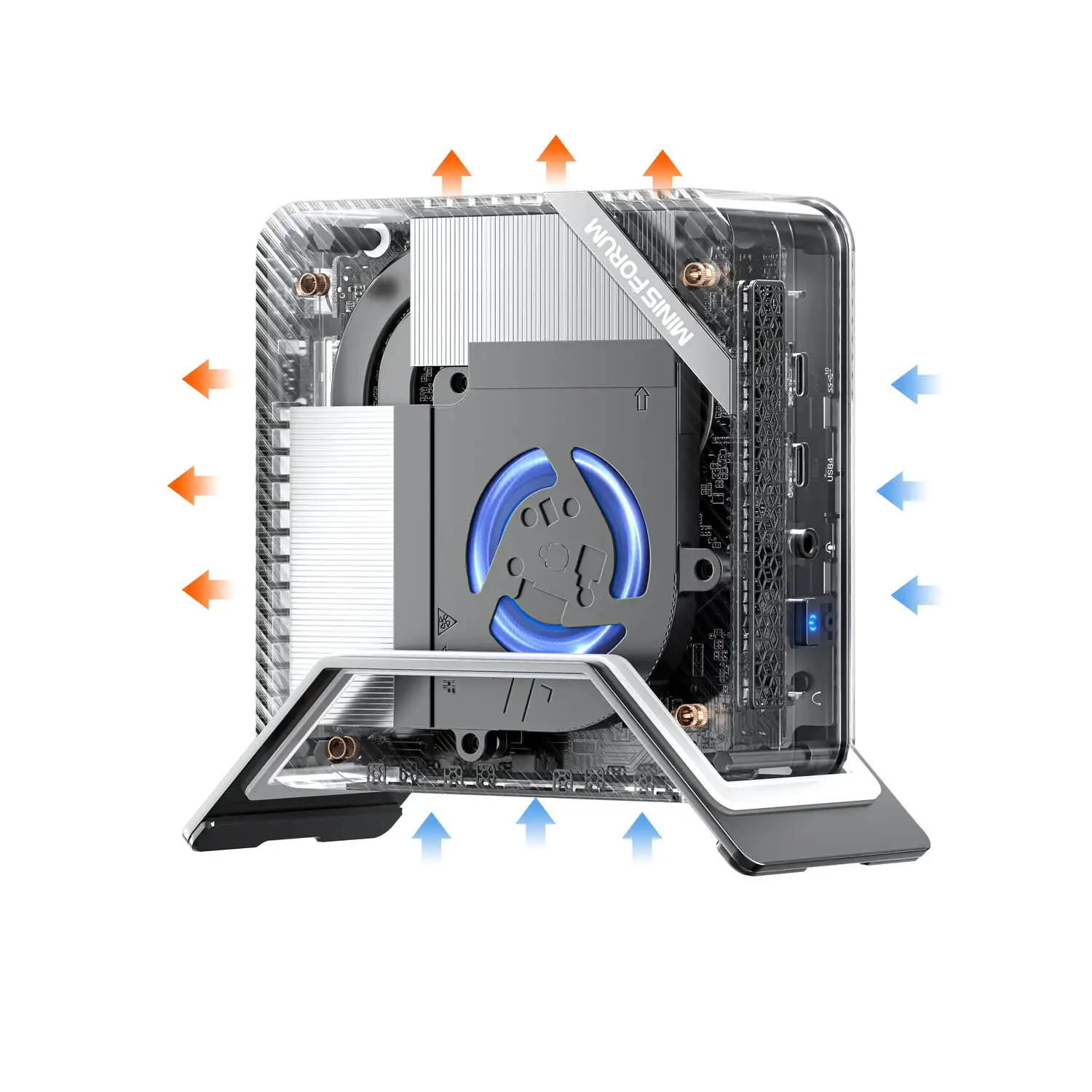

360° AIR VENTS
High-efficiency Thermal System

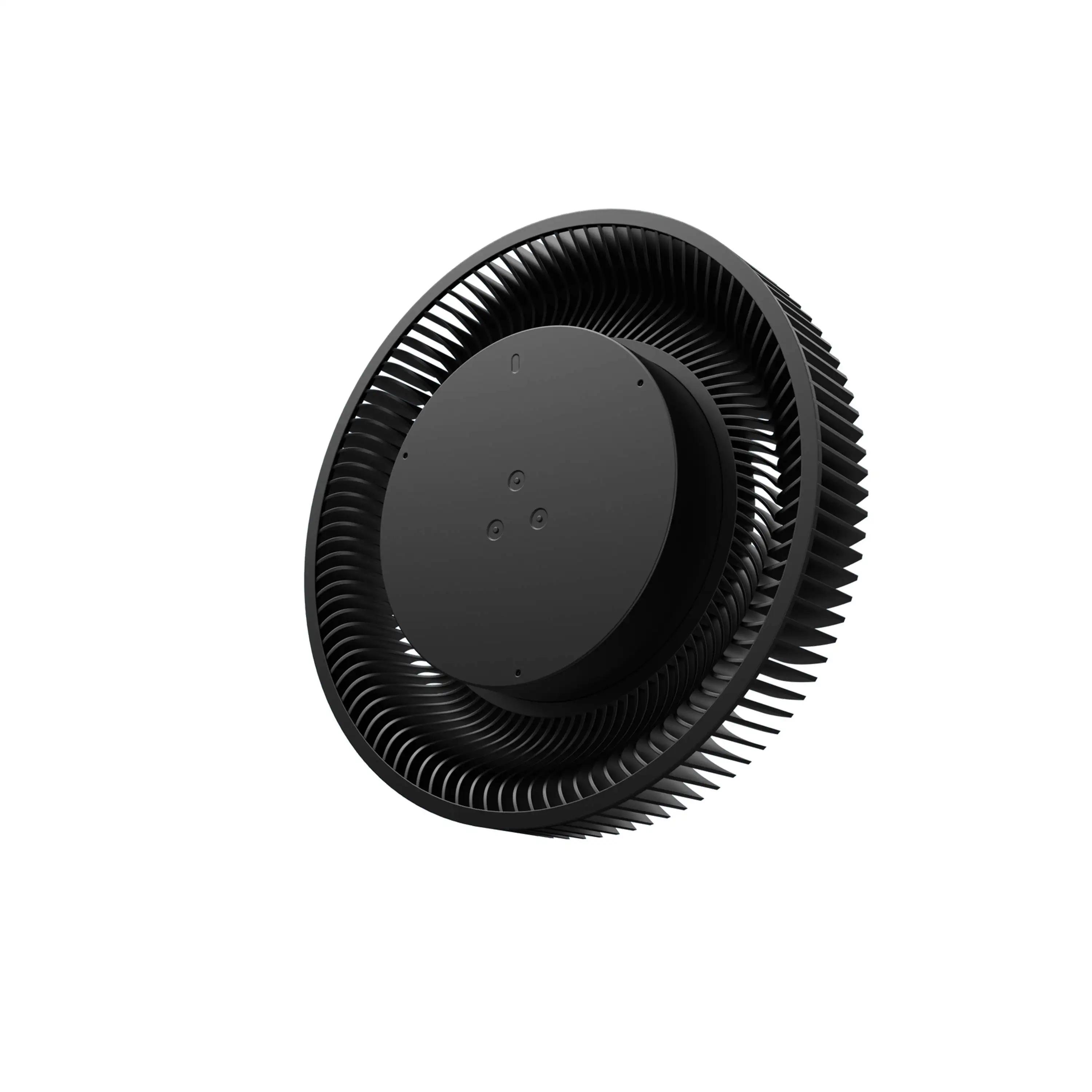

UM580D/UM560XT adopts 4 air vents on the case for fluent airflow. The smart fan inhales cooler air through 2 air vents into the case and blows out hotter air through the other 2 air vents to lower the ambient temperature.

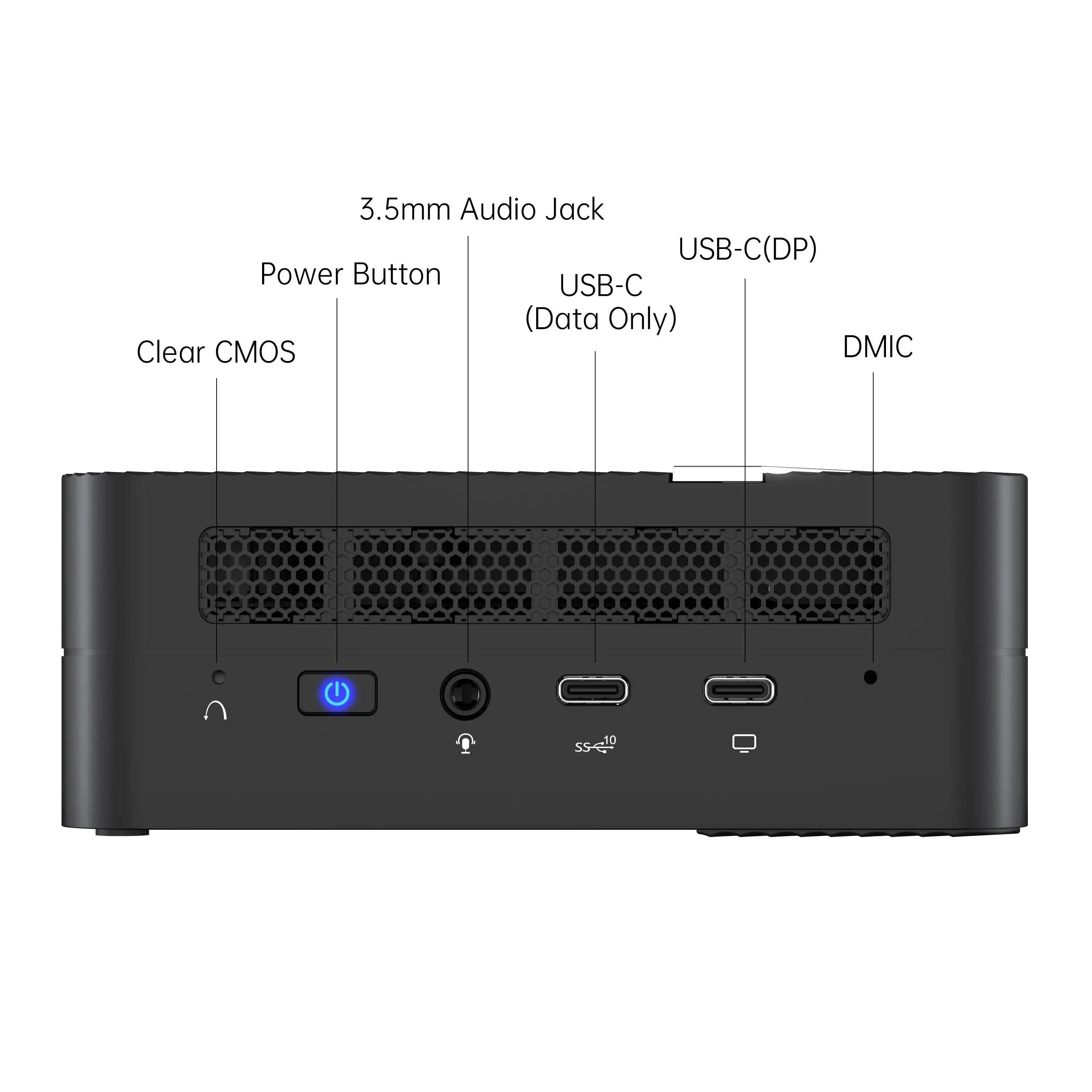

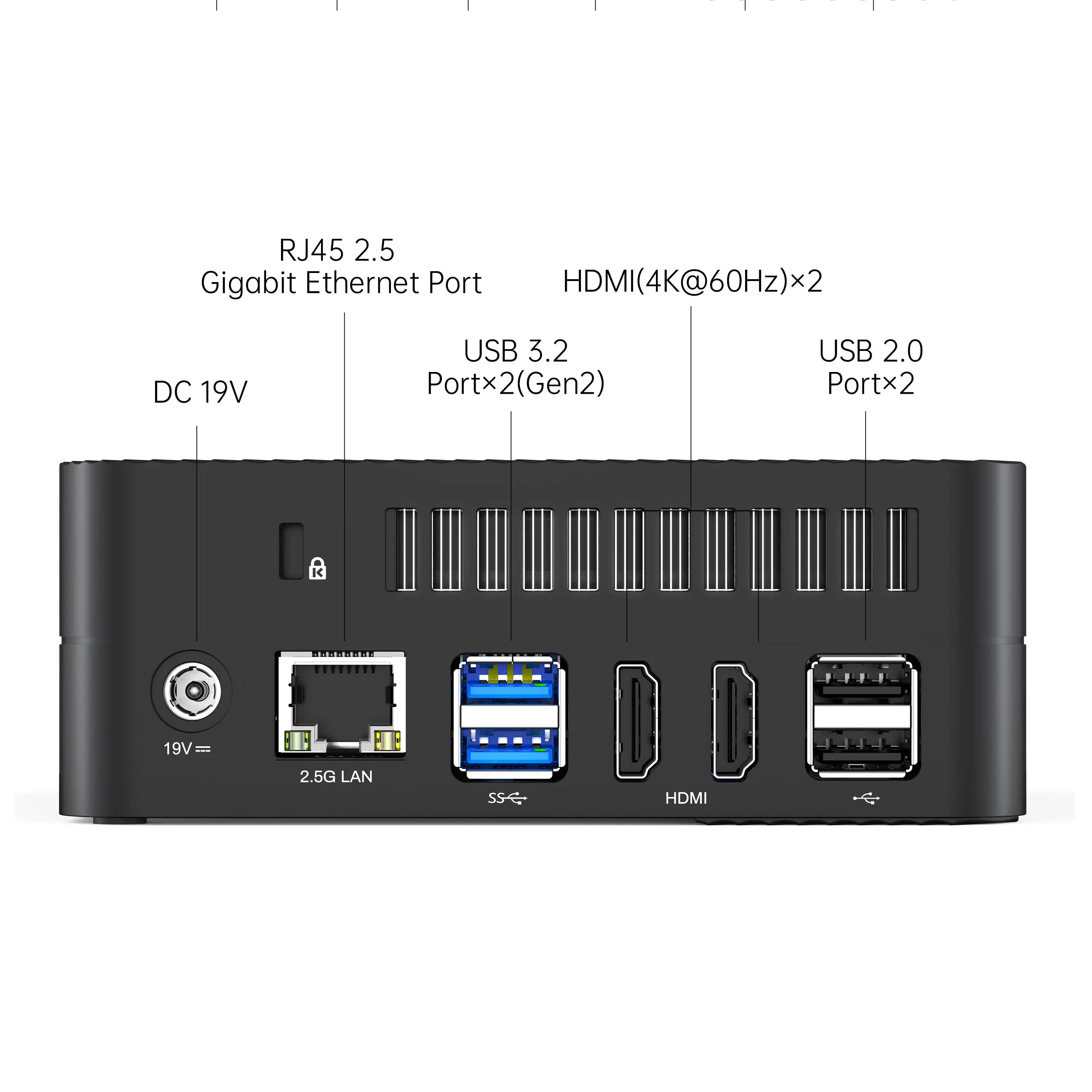

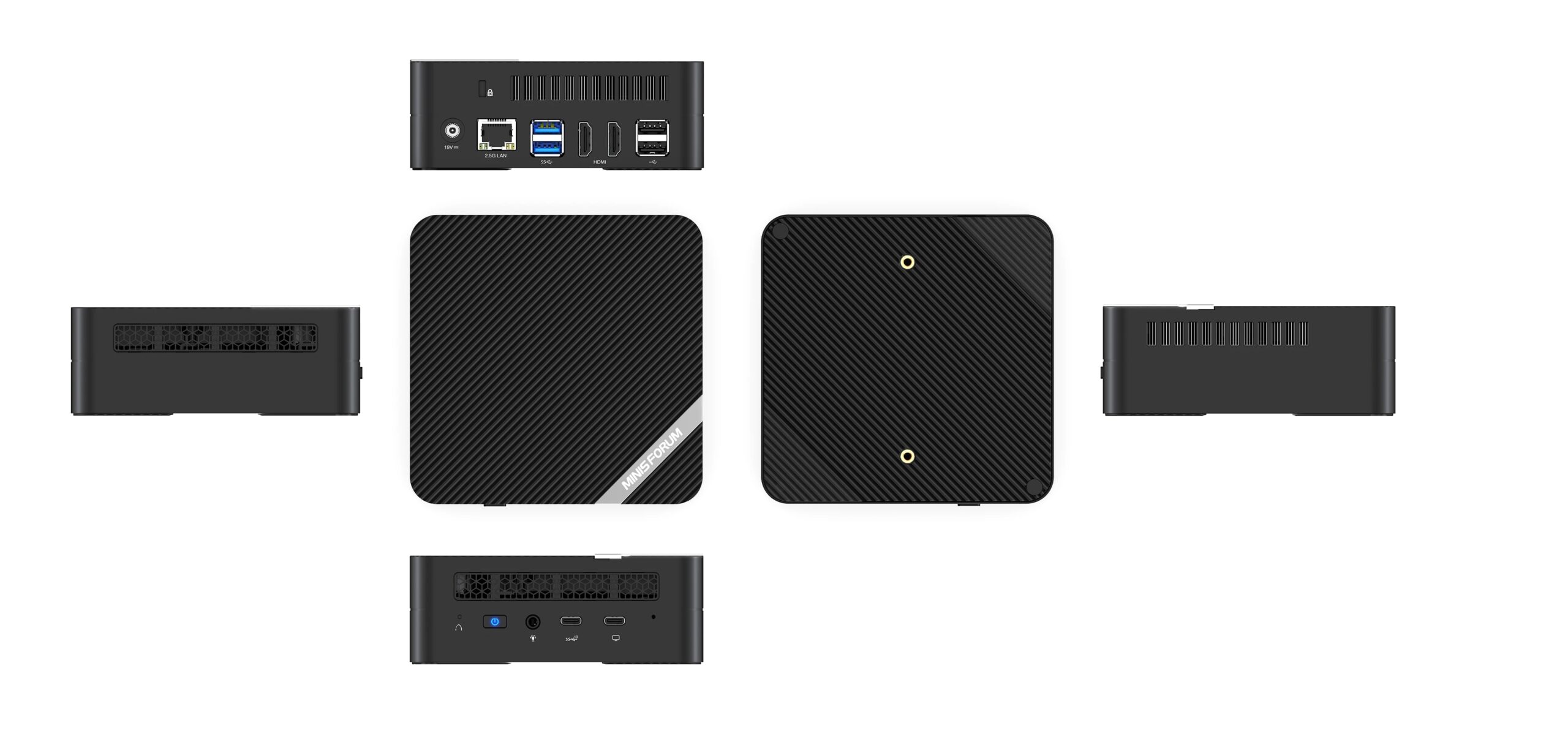

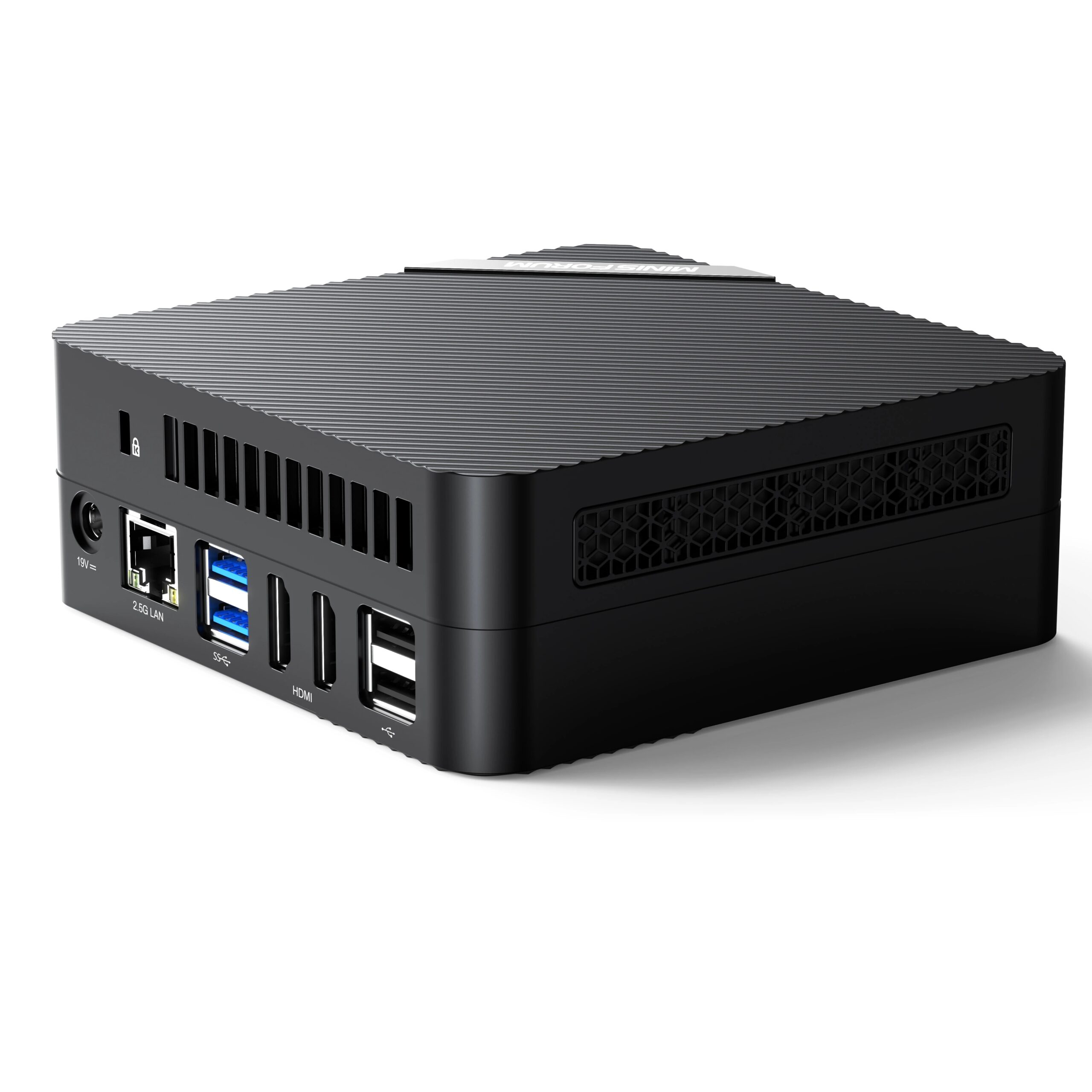

Ports & Buttons

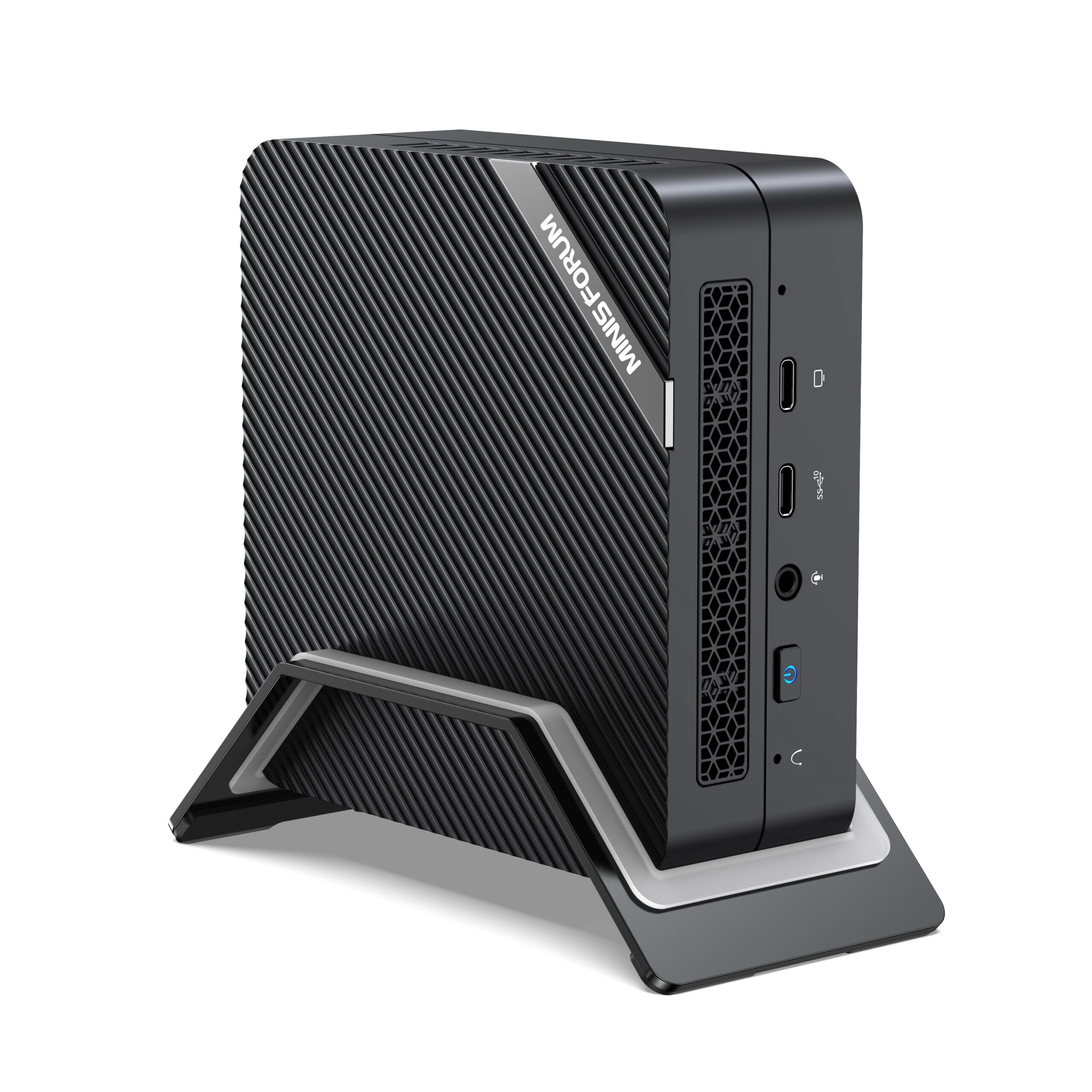

Compact & Portable
| Color | No Ram No Storage, 8GB DDR4 256GB NVMe, 16G DDR4 256GB NVMe, 16G DDR4 512GB NVMe, 32G DDR4 512GB NVMe, 32G DDR4 1TB NVMe, 64G DDR4 1TB NVMe, 64G DDR4 2TB NVMe |
|---|---|
| Bundle | Ryzen 5 5600H WiFi6, Ryzen 7 5800H WiFi6 |
| Plugs Type | us, AU, UK, EU |
| Ships From | CN |
